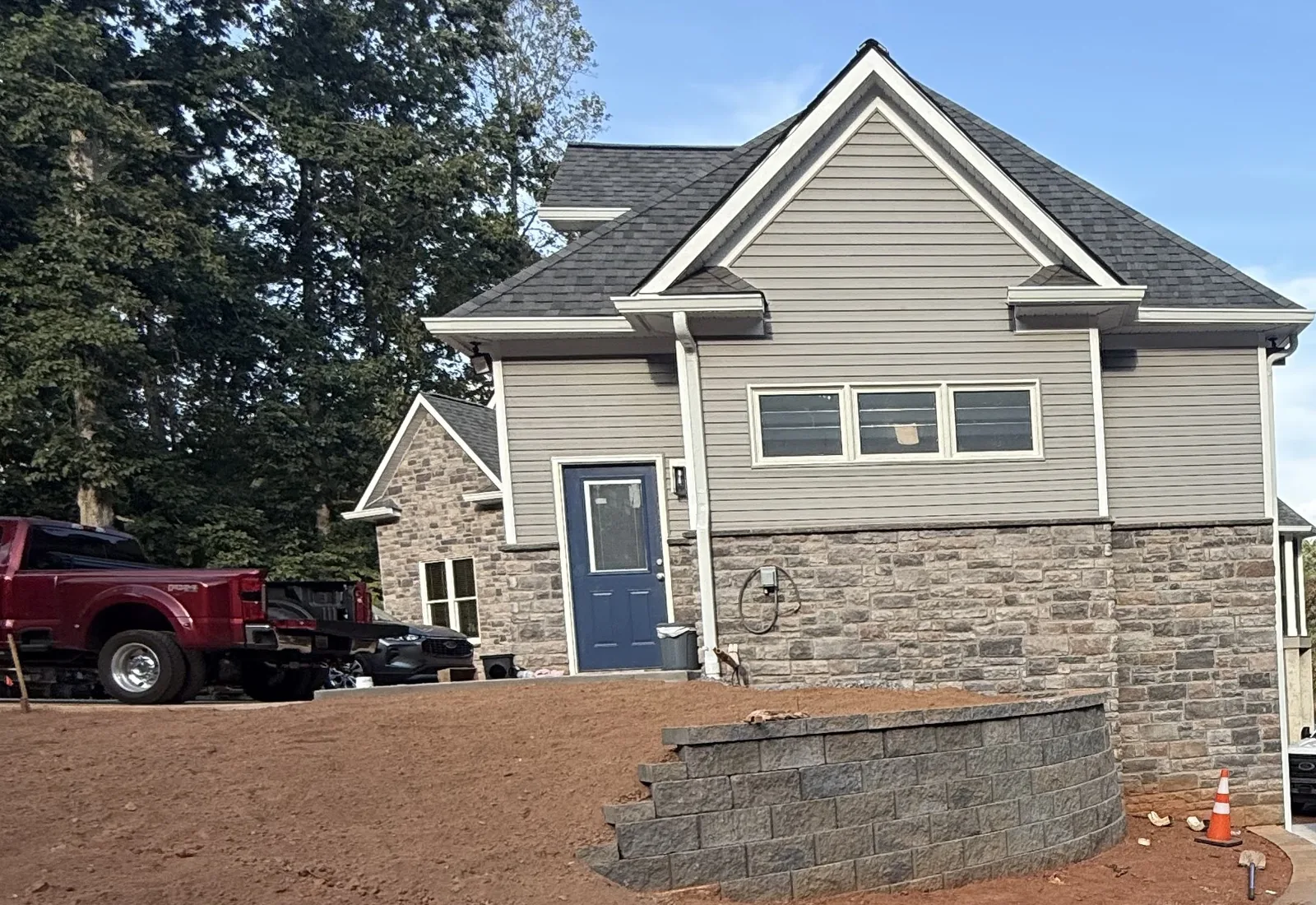

Cornerstone Excavation Group builds retaining walls for homeowners, builders and commercial property owners around Indian Trail. A wall holds the slope in place and stops soil from washing down. It also turns a steep bank into yard you can use. We build segmental block walls, from a small backyard wall to a structural wall on a commercial site.
Most of what makes a wall last sits under it and behind it. The base gets dug out, filled with stone and compacted before the first course. Behind the wall, washed stone and a drain pipe carry the water out. As an excavation contractor in Indian Trail, we handle the cut, the backfill and the grading around the wall.
Tell us about the job. We will get right back to you.

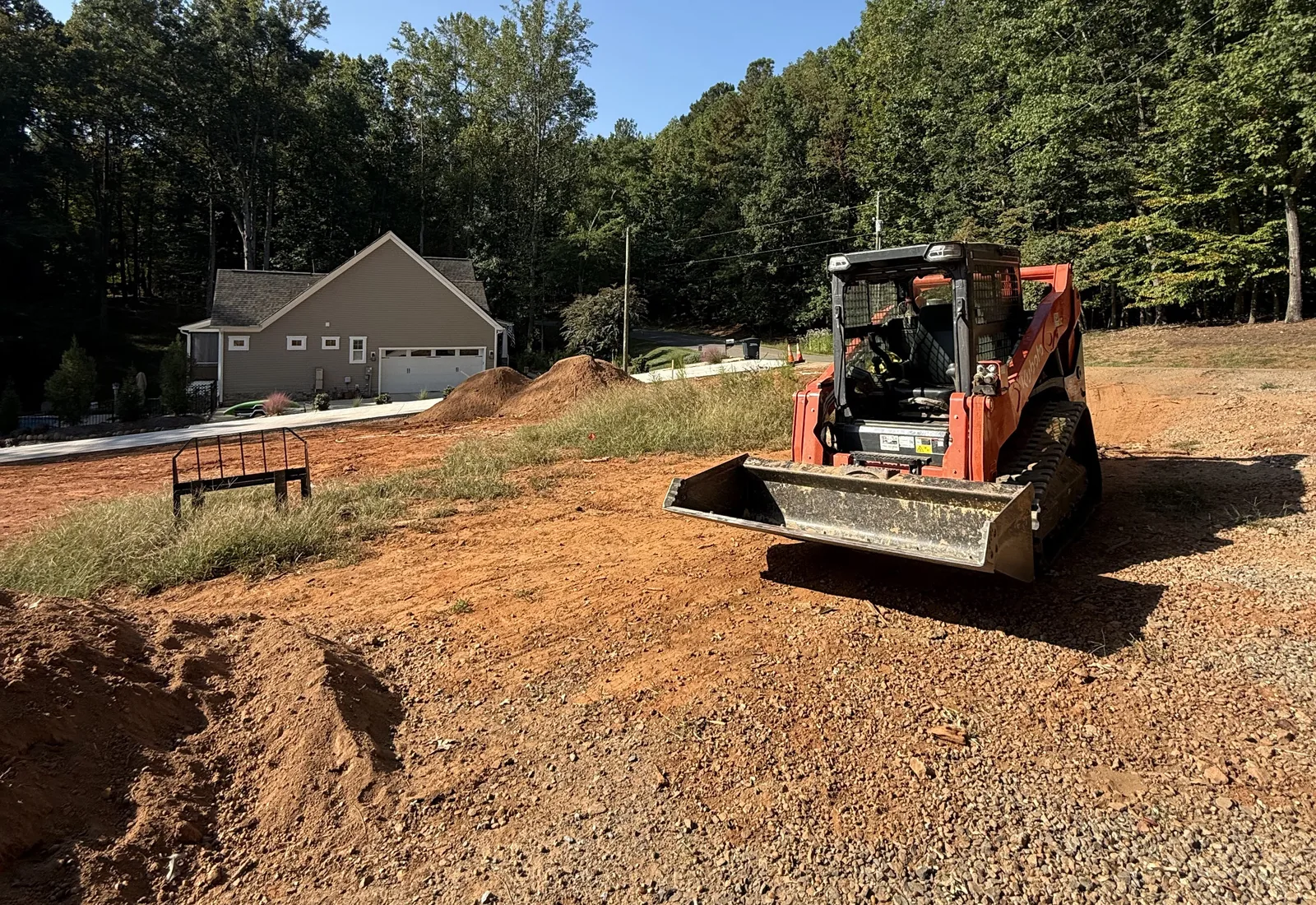

Every wall starts with the dig. Utility locates get called in through NC811 before the bucket moves. We cut back into the slope, then trench the base below finished grade. That trench is filled with crushed stone and compacted until it is tight and level.
Block goes up course by course, each one set level and locked to the one below. On taller walls the design calls for geogrid. Those sheets run back into the soil and tie the wall to the ground. We compact the backfill in lifts as the courses rise.
Behind the wall we place washed stone, filter fabric and a drain pipe. The pipe runs to daylight or into a drain line, so water leaves. Then the backfill goes in, the wall gets capped, and extra spoil is loaded out on our dump trucks.
Water is what takes a wall down. The Piedmont red clay across Union and Mecklenburg counties sheds water at the surface and drains slowly underneath. Wet clay behind a wall gets heavy and pushes hard against the block.
Give that water a path out and the load on the wall drops. A wall built tight against clay with bare fill behind it carries all of it. Over a wet winter, that wall starts to lean. The same thinking goes into fixing a yard that holds water, where the grade and the pipe do the work.
The base matters as much. Block set on loose dirt settles, and the courses above follow it out of level. We dig that base out, replace it with stone and compact it first.
Height is the line. Section R404.4 of the North Carolina Residential Code calls for an engineered design past 48 inches of unbalanced soil. The state fire marshal's office applies it to walls that cross a property line or support a building. Those walls are permitted and inspected, so confirm the current rule with your county before layout.
An engineer stamps that design and we build to it. The design sets the block, the base depth, the geogrid and the drainage. Our part is the excavation and the wall itself. The owner or the general contractor holds the permit.
Plenty of walls sit under that line. A wall that levels a backyard or squares up a side slope is plain work. Walls that carry a driveway or a building pad get planned with the site prep for the build.
Free estimates across the Charlotte metro, Union County and the York County side of South Carolina.
(980) 315-5707From the first call to the last load hauled off, here is how it goes.
Call or text (980) 315-5707 and tell us what the job is. We ask what the access looks like and when you need it done.
We come out to see the ground, the access and where the water goes. The visit and the estimate are free.
We set how the equipment gets in, where the material goes and what order the work runs in. Utility locates go in through NC811 before we dig, and any permit stays in the owner or builder's name.
The machines come in and the job gets done in the order we planned. Weather moves earthwork, so we tell you when the schedule shifts.
Spoils, brush and demolition material leave on our dump trucks. We grade the ground back before the equipment comes off the site.
Common questions about retaining walls across the Charlotte metro, Union County and the York County side of South Carolina. If yours is not here, call and ask.
